3-in-1 filters are a domestic system installed on the water inlet to a flat or a small house, solving three different tasks within a single cabinet: it retains particles, removes hardness by ion exchange, and takes out free chlorine, taste and odour by adsorption on activated carbon. An industrial scheme gives each of the three tasks its own device; here they are brought together in one replaceable module, and along with the floor space one also saves the ability to tune the stages separately.
Principle

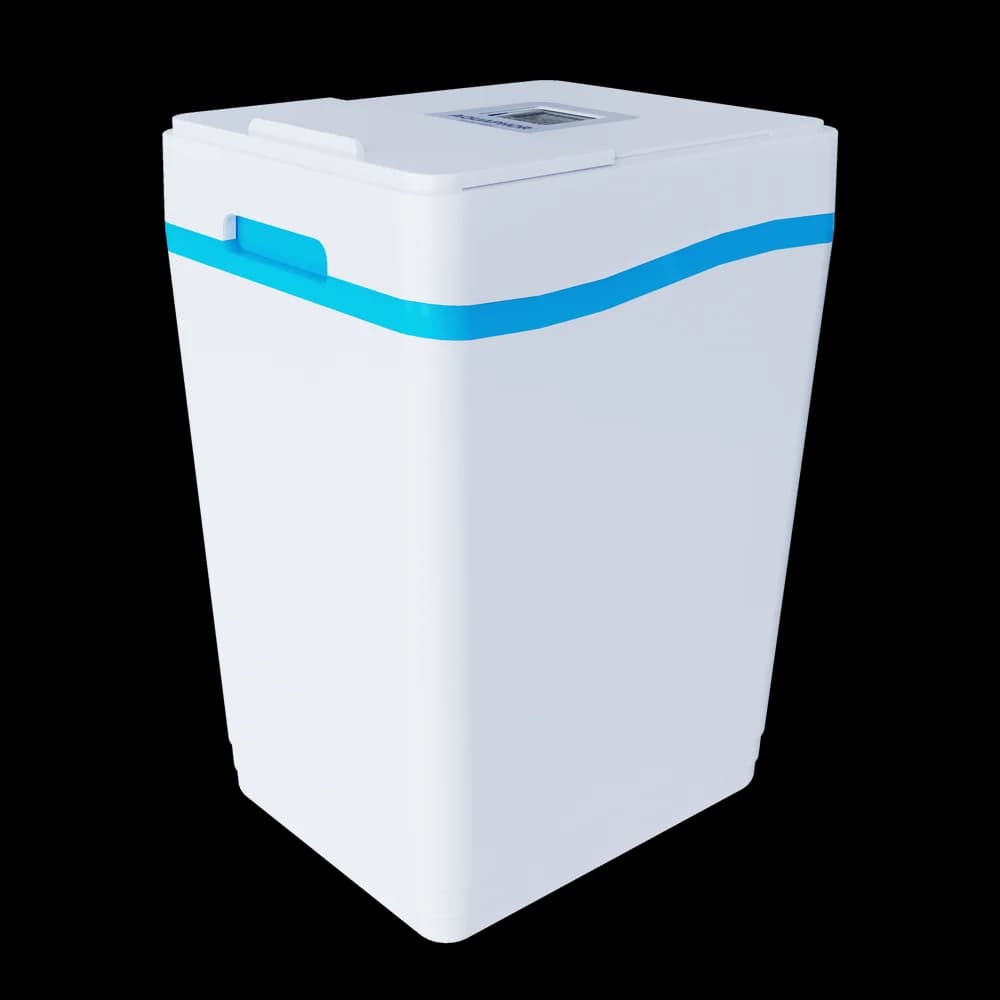

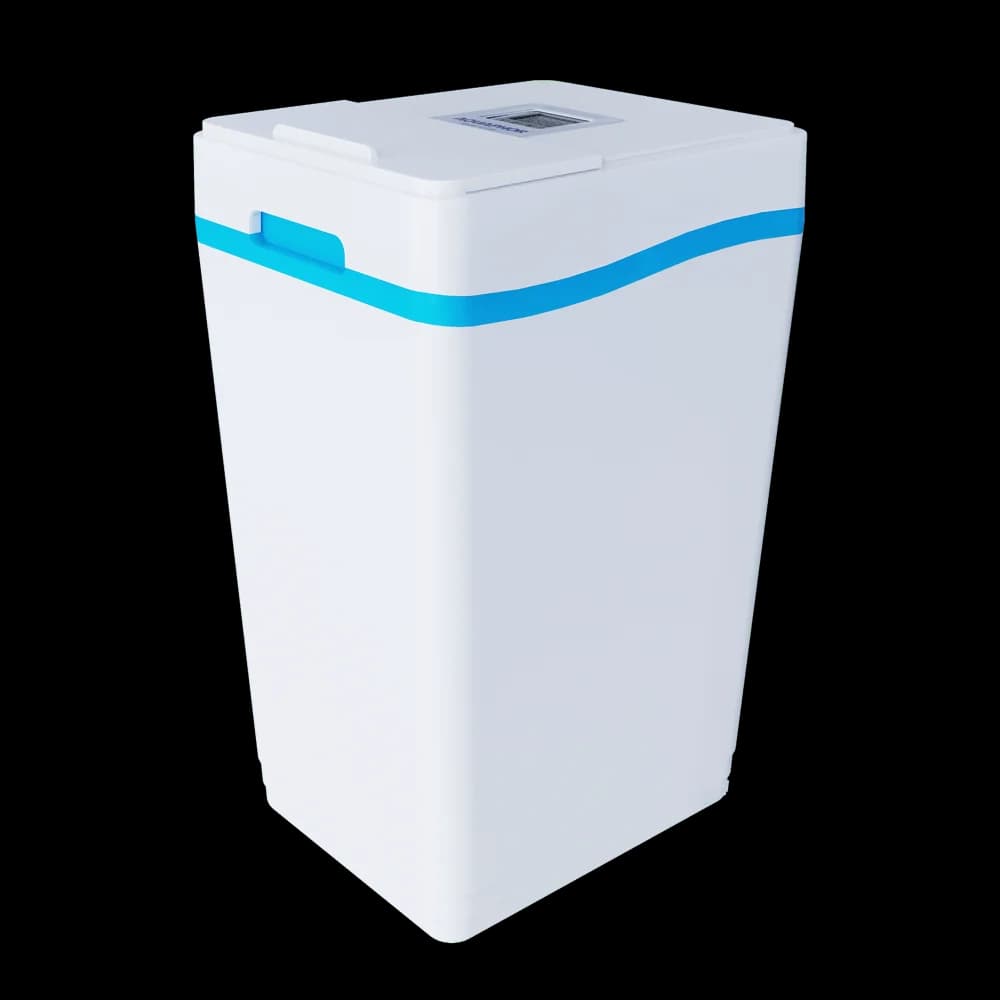

The system is a floor-standing cabinet cut into the pipe at the inlet, downstream of the isolating valve and the meter. Inside sits a replaceable module with several working layers arranged along the path of the water; the water passes through them in sequence in a single pass, and the three stages have no separate vessels, no separate pipework and no separate valves. The catalogue dimensions are 41 × 50 × 80 cm at a gross weight of 35 kg.
The first layer is mechanical. It retains sand, mill scale and corrosion products arriving from the building pipework, and it works less for the quality of the water at the tap than for the survival of the two layers behind it: both the resin and the carbon blind with suspended solids sooner than they use up their own capacity.
Softening works by ion exchange. Cation exchange resin holds calcium and magnesium and gives back an equivalent amount of sodium to the water; scale no longer forms, because what it is made of is no longer in the water. The exchange capacity of the resin is finite — that is its defining property — and it is restored by regeneration with a solution of common salt.
The third layer is adsorption on activated carbon. Free chlorine, the products of its reaction with organics, taste and odour are held physically on the large surface of the carbon. Unlike the resin, the carbon cannot be regenerated: its capacity is spent for good, and it is this that most often limits the life of the module as a whole.
The system counts down to regeneration itself — either by the volume actually passed or by time. It is for that unit that some models in the catalogue carry a power supply figure at all: 12 V AC, meaning the supply comes from an adapter rather than from the mains directly. Regeneration takes time during which the system is busy with itself, so it is set for the night hours, when there is no draw-off.
Principle
«3-in-1» is not three stages placed one after another but a single module with several working layers, and its capacity is shared. Regeneration with salt restores the exchange capacity of the resin, but it restores neither the adsorption layer nor the mechanical one: those are spent independently and at different rates. When any one of the three runs out, the whole module is replaced — the layers cannot be separated, since they sit in a single housing. Hence a consequence that changes the calculation: service life is set not by average water but by whichever of its parameters is worst in that particular flat.
The catalogue figure for «maximum removable hardness» — 34 meq/l — does not read the way it looks. It is not the hardness the system brings the water down to, but the upper limit of feed water at which fitting the module makes sense at all. Above that limit the system does not fail: it spends its capacity in weeks instead of months, regenerations follow one another, and the consumption of salt and rinse water grows faster than the result improves.
Softening does not reduce salinity. Calcium and magnesium are not taken out of the water but exchanged for an equivalent amount of sodium, so an analysis downstream will show the same mineralised content, the same nitrates and the same sulphates as before. For anyone who expected «clean water» this is the commonest source of disappointment in a perfectly sound system: the scale has gone, the salt composition has stayed, and it is dealt with by a membrane stage, not by ion exchange.
Practice
Three tasks are closed by one point of service: one connection into the pipe, one routine, one consumable. An industrial scheme for the same three tasks means three devices, three sets of pipework and three independent routines, and there is nowhere in a flat to put them.
The space required is set by the catalogue dimensions: 41 × 50 × 80 cm and 35 kg gross. That is a recess, a storeroom or the space under a staircase, but not the space under a sink; and the selection allows not only for the cabinet itself but for access to it for topping up salt and changing the module.
The flow is capped firmly by the data sheet: 23 l/min in service and 35 l/min at peak, which the catalogue describes as a draw-off of about three taps. This is a limit on simultaneity, not on the day: the total daily volume may be modest and the system still be too small if two bathrooms in the house are used at the same time.
The stages cannot be tuned separately. The depth of softening, the capacity of the resin and the volume of the adsorption layer are set by the manufacturer of the module, not by a calculation against a particular analysis; what remains among the selection parameters is the choice of model. That is the price of compactness, and it is worth knowing before the purchase rather than after the first check analysis.
We do not manufacture the system. Our part of the work is the analysis of the feed water, the check on whether it falls within the limits of the model, the choice of model against the actual draw-off, supply, installation at the inlet and subsequent service; and the first thing we check is whether this is one of the cases where a domestic system will not be enough at all.
Limits
Practice
The cases are typical examples, not site reports.
Scheme
The system goes on the inlet, downstream of the isolating valve and the meter, and a coarse strainer ahead of it is obligatory. This is not an extra: a grain of sand or a flake of mill scale from the building pipework damages the parts that count and switch the regeneration sooner than the module uses up its capacity.
The 3-in-1 does not close the drinking point, and in most flats reverse osmosis stays under the sink. The split of tasks here is simple: the 3-in-1 works on the whole distribution and on the appliances — scale, chlorine, particles; the osmosis works on one tap and answers for the salt composition.
The reverse order — putting a 3-in-1 in place of pretreatment for borehole water — does not work. In an industrial scheme each stage protects the next, and the order in it carries meaning; inside a single module there is no such margin, because all three layers take the water exactly as it arrived at the inlet.
Operation
Energy
The system's own consumption is negligible: the only electricity used goes to the unit that counts down to regeneration and switches the flows, and the catalogue gives its supply as 12 V AC — that is, from an adapter rather than from the mains directly; for some models in the section no power supply is stated at all. The running costs that matter here are different: the salt for regeneration and the water that rinses the resin afterwards. Neither follows the data sheet; both follow the hardness of the feed water and the actual draw-off — the harder the water, the more often the system regenerates and the faster both figures grow.
Consumables
What goes to drain
What is removed leaves with the regeneration water: a solution in which the calcium and magnesium taken off the resin go together with an excess of sodium. The discharge is brackish and comes in a slug — over a short time a volume markedly greater than ordinary domestic use goes to drain. In a city flat it mixes with domestic sewage and needs no separate decision; on a site with its own septic tank it is allowed for in advance, because a slug of salty discharge suppresses the biological stage of the tank, and the consequences show up not at the filter but in the drainage system. A spent module cannot be restored on site and is disposed of as solid waste.
Sizing
What we account for
What a wrong choice costs
Sizing
Questions
Worse for control and better for space; that is exactly the trade. Three separate devices are each selected against their own parameter, regenerated and replaced independently. In a 3-in-1 module the layers are arranged by the manufacturer, their capacity is shared, and they cannot be tuned separately. For mains water in a flat that is a sensible trade: the deviations are moderate and predictable. For a borehole it stops being sensible, because there any parameter may turn out to be the governing one.
It is an upper limit on the feed water, not a result at the outlet. The figure answers the question of whether fitting the module to such water makes sense at all, not the question of what hardness it will bring the water down to. Above that limit the system keeps working, but the exchange capacity is spent so fast that regenerations become almost daily. The figure is not given for every model in the section, so it is checked against the particular item.
Usually yes, and not because the 3-in-1 works badly but because the tasks differ. The system at the inlet takes hardness, chlorine and particles out of the whole distribution — that is protection for the appliances, and taste and smell. It does not change salinity, nitrates, sulphates or the sodium content at all, and if the drinking water has requirements beyond taste and smell, those are closed by a membrane stage on a single point under the sink.
There is no answer by the calendar: both follow the hardness of the feed water and the actual draw-off. The module is changed when any one of the three layers has used up its capacity, not when a term expires. The signs show in advance: regenerations grow more frequent at an unchanged draw-off, the taste of chlorine comes back early, scale reappears. Replacement is planned on those signs, without waiting for the water to return to its original state.
As a rule, no. Borehole water differs not in the degree of contamination but in its composition: it carries dissolved iron, often manganese and hydrogen sulphide, and it carries none of the free chlorine that the adsorption layer is there for. Dissolved iron cannot be retained until it is oxidised, and there is no oxidant in this scheme. For a groundwater intake a scheme of separate stages is assembled: aeration, reagent-free filtration, then softening and disinfection.
It does, and that is what ion exchange is: calcium and magnesium go onto the resin, and an equivalent amount of sodium goes into the water. Total salinity hardly changes, but the harder the feed water was, the more noticeable the gain in sodium. Where there is a limit on sodium, the drinking water is separated out and prepared by reverse osmosis, while the system at the inlet goes on solving its own task for the whole distribution.
