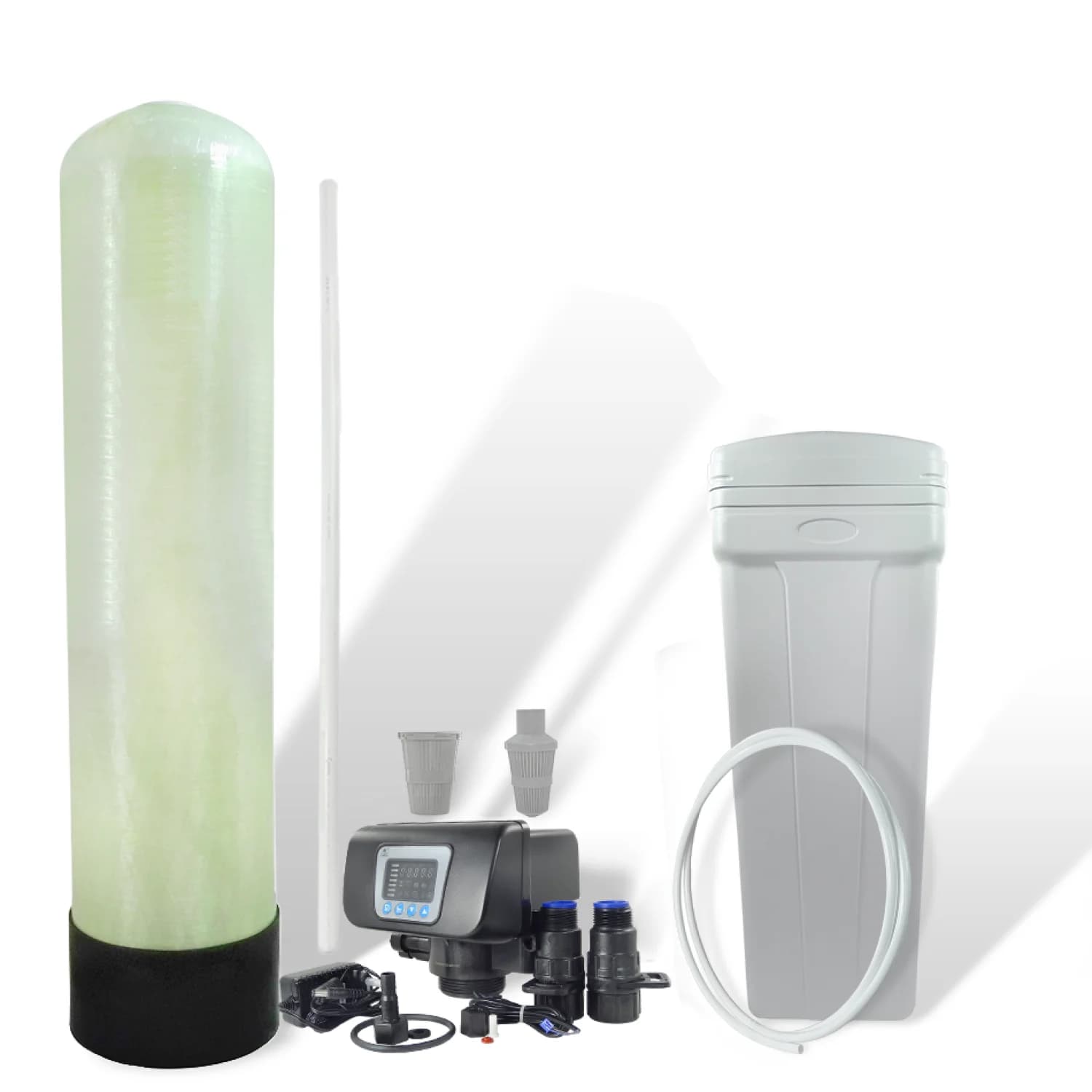

1354/F63C1 ion exchange unit

Ion-exchange unit for water treatment: water passes through a housing filled with ion-exchange resin, and the ions dissolved in it are replaced by an equivalent amount of ions released by the media. Resin selection sets the specific task — softening, alkalinity reduction (decarbonization), partial or full desalination, nitrate or boron removal. When the media's exchange capacity is exhausted, the controls run a regeneration cycle and the unit returns to service.

Designs on 8 to 13-inch housings cover small and medium flow rates: these use Runxin valves with 3/4 and 1-inch connections and capacity up to 4.5 m³/h, all top-mounted. Some valves in the line are fitted with a water meter and track the interval between regenerations by actual flow, while the rest track it by time. Choosing within the line comes down to the site's flow rate, the media volume, and the regeneration trigger method.

Design 1354/F63C1: housing 13×54″, automatic Runxin F63C1 valve, up to 4.5 m³/h, 1" connection, top mounting. The valve is designed for softening — regeneration of the ion-exchange load with reagent solution. Weight 19.874 kg.

Configuration within the line: vessel size 1354 (13×54″) with control valve Runxin F63C1. On the same vessel size 1354 (13×54″) the line also offers Runxin F69P3, Runxin F63P3, Runxin F63C3, Runxin F82B3 and others. The same control valve Runxin F63C1 is fitted on 1054, 1252, 1465, 1865 and others.

On vessel size 1354 the closest alternatives to Runxin F63C1 are Runxin F69P3 (valve capacity up to 2.0 m³/h instead of up to 4.5 m³/h, water meter Yes instead of None, connection 3/4" instead of 1"), Runxin F63P3 (water meter Yes instead of None, weight 19.816 kg instead of 19.874 kg) and Runxin F63C3 (water meter Yes instead of None).
