1865/F67G reagent-free filtration unit

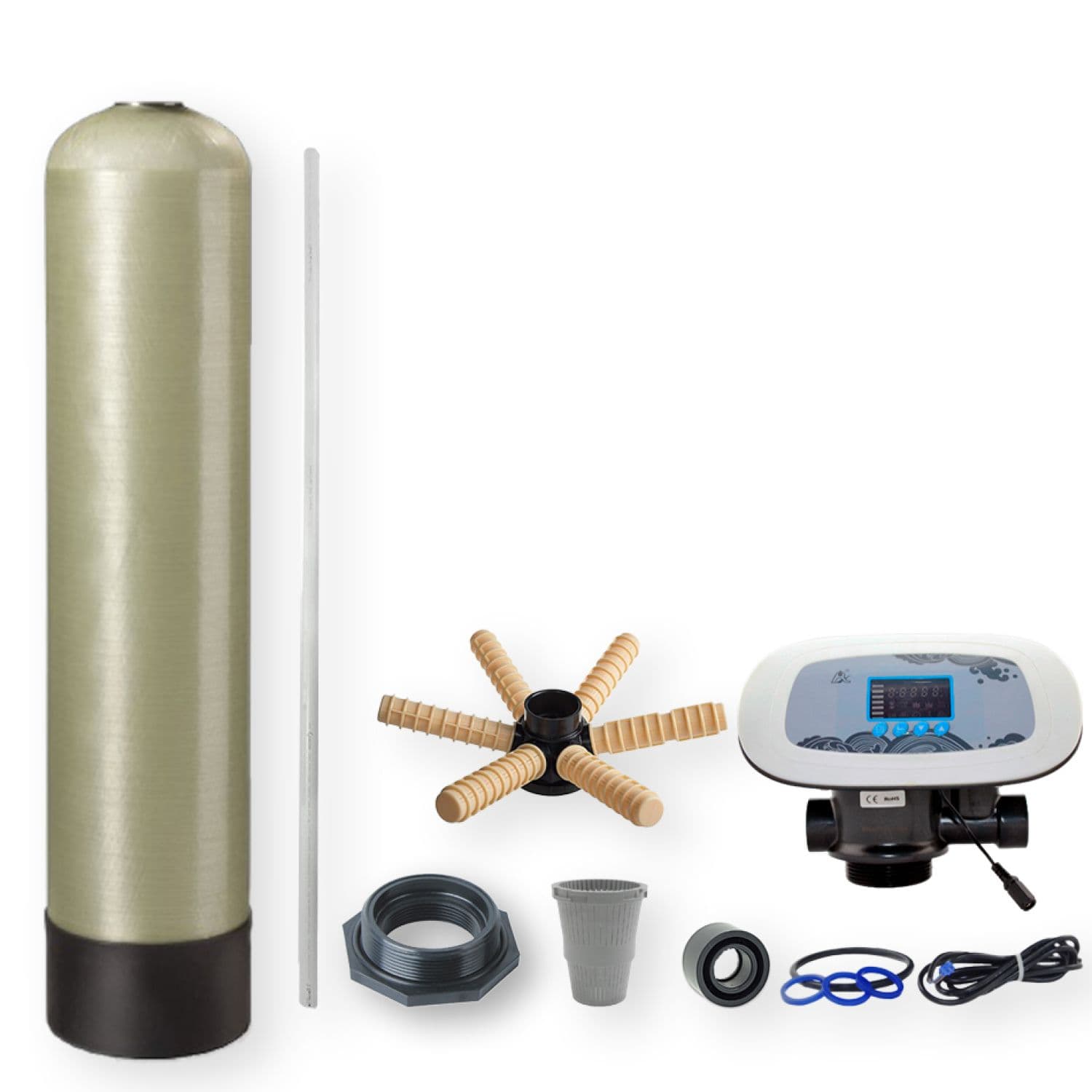

The reagent-free filtration unit removes dissolved iron, manganese and hydrogen sulfide from water, along with turbidity and color, bringing the water to the required standards. Inside: a fiberglass housing laminated with polyethylene on the inside, an automatic control valve, granular filter media, a supporting gravel layer, and a drainage-distribution system.

The media oxidizes dissolved iron and manganese directly: passing through it, they convert to an insoluble form and precipitate as sediment, which is retained within the media bed and flushed to drain by backwash — no reagents are consumed. Housings from 14 to 21 inches are sized for flow rates that require a larger volume of media and faster backwashing: in this group, 2″ Runxin models rated up to 10 m³/h are added alongside the 3/4″ and 1″ valves, with top valve mounting.

Design 1865/F67G: 18×65″ housing, automatic Runxin F67G valve, up to 4 m³/h, 1" connection, top mounting. The valve is designed for filtration — reagent-free backwash of the load. Weight 35.48 kg.

Configuration within the line: vessel size 1865 (18×65″) with control valve Runxin F67G. On the same vessel size 1865 (18×65″) the line also offers Runxin F75A1, Runxin F67P, Runxin F67C3, Runxin F75Q1 and others. The same control valve Runxin F67G is fitted on 0844, 1054, 1044, 1344 and others.

On vessel size 1865 the closest alternatives to Runxin F67G are Runxin F75A1 (valve capacity up to 10.0 m³/h instead of up to 4 m³/h, connection 2" instead of 1", weight 38.8 kg instead of 35.48 kg), Runxin F67P (valve capacity up to 4.5 m³/h instead of up to 4 m³/h, weight 35.15 kg instead of 35.48 kg) and Runxin F67C3 (valve capacity up to 4.5 m³/h instead of up to 4 m³/h, weight 35.15 kg instead of 35.48 kg).
